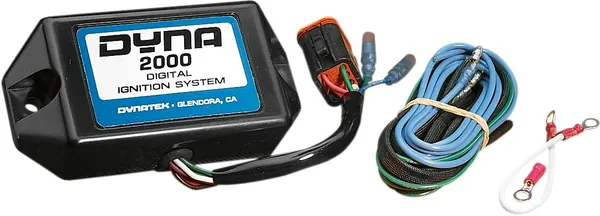

DYNATEK-HARLEY 2000-HDE PC-Programmable Digital Ignition Module Harley Davidson FLHR / FLHRCI / FLHRI 883-1340cc 94-03

Features:

• A plug-in upgrade to the electronic advance ignition found on late model Harleys, these ignitions are micro-computer controlled, generating extremely accurate control over the entire ignition process.
• Allow riders to tailor the advance curve and rev limiter to the specific needs of their particular engine; four built-in advance curves cover the needs of stock to highly modified engines over a variety of operating conditions; four independent rev limiter choices from 6000 to 7500 rpm set the exact protection level needed.
• PC programmability allows you to define a wide-open and part-throttle curve, rev limits, dead-cranking revs and rear cylinder offset.
• A separate tach output wire allows clean tach operation during rev limiting and when in single-fire mode.
• A diagnostic LED indicator is included on the back of the control module to assist trouble shooting and static timing.
• Made in the USA.
• Not for fuel-injected models.
• HDE systems are not compatible with Dyna "S" systems. Use HD1/HD2 systems only.
• Comes with a 7-pin connector; can be used with either one ignition coil firing both cylinders (dual fire), or with two ignition coils, one firing each cylinder (single-fire); no other ignition offers this flexibility.

Fit the models:
