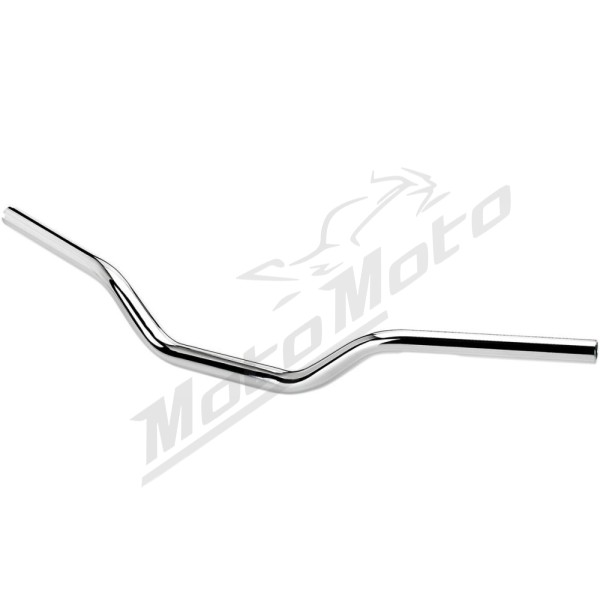

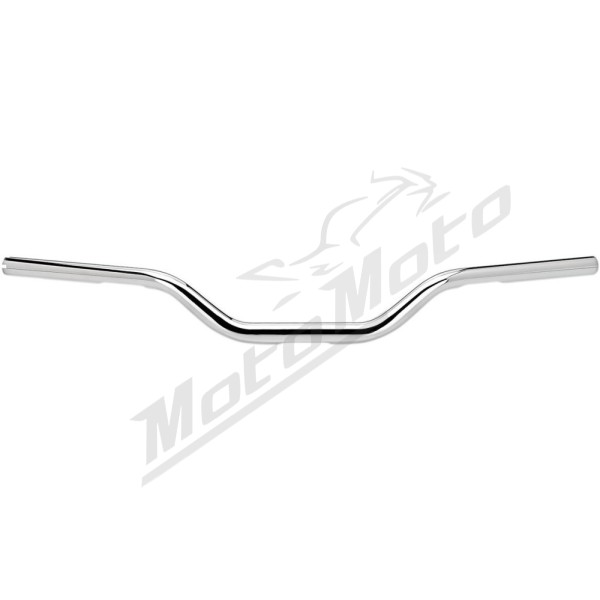

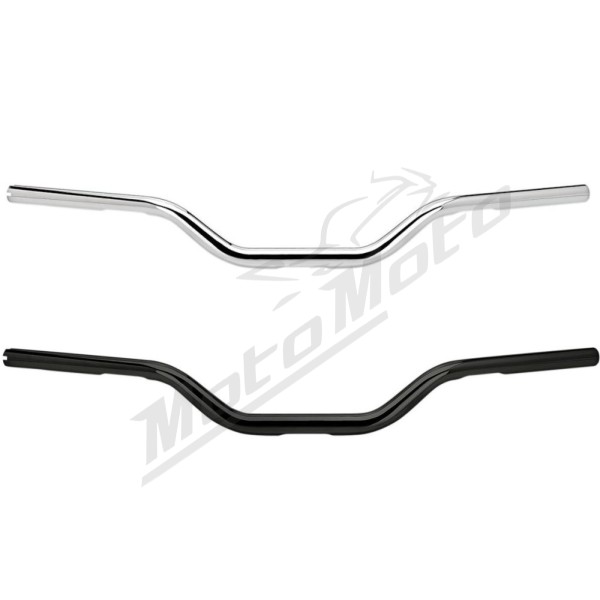

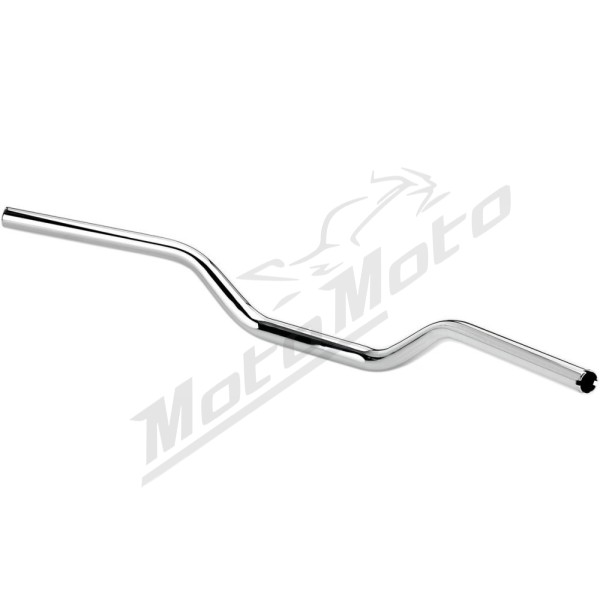

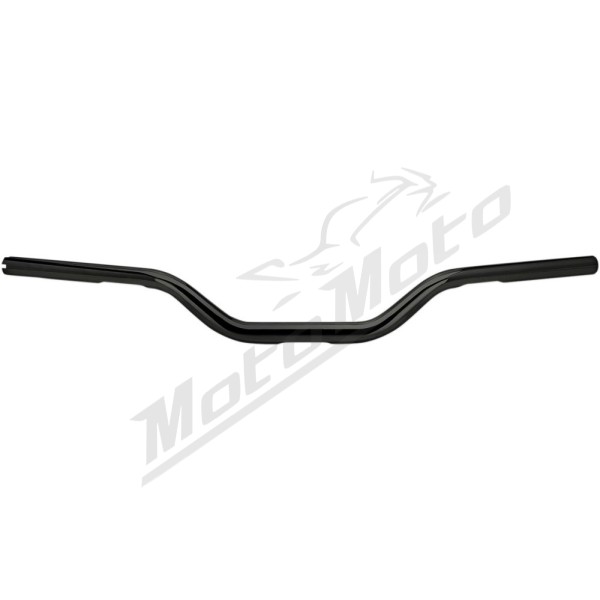

BILTWELL Tracker O/S Handlebar Ø28,6mm 775mm

Features:

• Manufactured from 1" OD x 0.120” wall seamless 4130 chromoly tubing
• All bends are created with internal mandrels on a CNC bender to reduce flat spots in the bends
• All welded joints are precision mitered and TIG welded
• If grip sets aren't installed, bars will be 1-1/8" shorter than listed
• These bars will not mount to normal 1” clamps found on the majority of stock and aftermarket risers
• 1-1/8" outer diameter center section tapers to 1" at the grip ends.
• Rise: 82,6 mm
• Center Width: 12,5 cm
• Controls Diameter: 25,4 mm
• Handlebar Diameter: 28,6 mm
• Width: 77,5 cm
• Clamping Diameter: 28,6 mm
• End Rise: 76,2 mm
• Height: 82,6 mm
