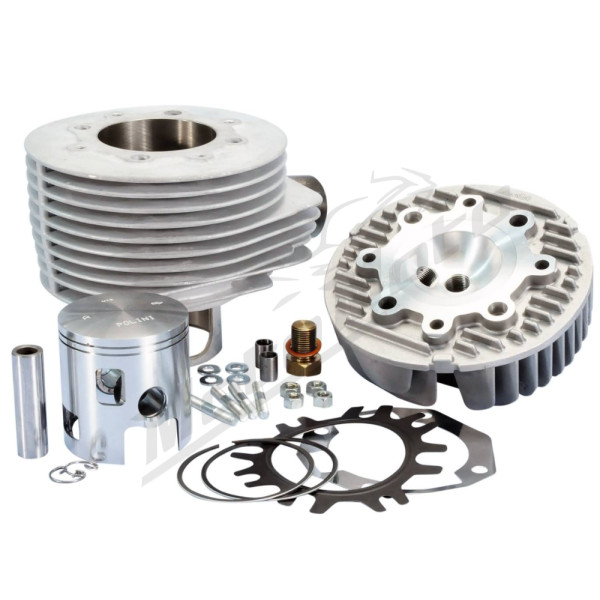

Cylinder kit POLINI Sprint Veloce Ø63 PIN Ø15 Vespa 125cc-> 2T

Key strengths of this new Polini kit:

• Cylinder diameter 63 mm. Designed to improve gas flow.
• Available with standard 57 mm stroke for 178cc, or more Racing with modified 60 mm stroke for 187cc. For the 60 mm kit, an advanced crankshaft is available.
• Air-cooled cylinder, but thanks to aluminum and special fins, the engine temperature stays lower.
• New cast cylinder head, prepared for two spark plugs. The classic side spark plug hole, like the original, is easiest for assembly; the Racing version with central spark plug requires a small modification to the plastic cover.
• Extra mounting points: not just the standard 4, the Polini head has 4 more for better compression stability.
• Enlarged fins for improved heat dissipation and silicon steel cylinder head gasket (not on the original Vespa) for maximum compression resistance between head and cylinder.

Specifications:

• Bore: Ø63mm
• Stroke: 60mm
• Engine displacement: 187cc
• Material: Aluminium
• Class: Race
• Including cilinder head: Yes
• Bore category: Bigbore
• Piston pin: Ø15mm
• Cooling: Air cooled

Fits for models:
LML Star Deluxe 125 AIR 2T E1 '00-'06
LML Star Deluxe 125 AIR 2T E2 '07-'17
LML Star Deluxe 150 AIR 2T E1 '00-'06
LML Star Deluxe 150 AIR 2T E2 '07-'17
Vespa Cosa1 125 AIR 2T '88-'91 (VNR1T)
Vespa Cosa1 150 AIR 2T '88-'91 (VLR1T)
Vespa Cosa2 125 AIR 2T '92-'98 (VNR2T)
Vespa Cosa2 150 AIR 2T '92-'95 (VLR2T)
Vespa P 125 X AIR 2T '77-'80 (VNX1T)
Vespa P 150 S AIR 2T '78-'90 (VBX1T)
Vespa P 150 X AIR 2T '78-'80 (VLX1T)
Vespa PX 125E AIR 2T '81-'82 (VNX2T)
Vespa PX 125E AIR 2T E1 '98-'06 (M09040)
Vespa PX 125E AIR 2T E2 '07-'10 (M50100)
Vespa PX 125E AIR 2T E3 '11-'17 (M74100)
Vespa PX 125E Arcobaleno AIR 2T '83-'97 (VNX2T)
Vespa PX 150E AIR 2T '81-'82 (VLX2T)
Vespa PX 150E AIR 2T E1 '98-'06 (M09355)
Vespa PX 150E AIR 2T E2 '07-'10 (M51100)
Vespa PX 150E AIR 2T E3 '11-'17 (M74200)
Vespa PX 150E Arcobaleno AIR 2T '83-'97 (VLX2T)
