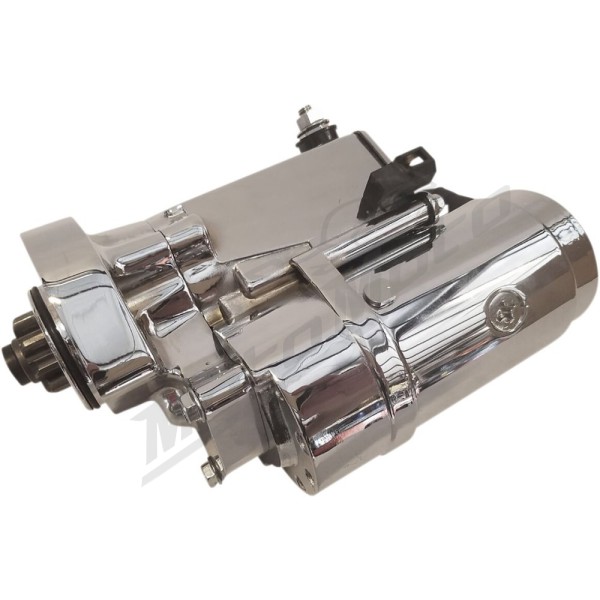

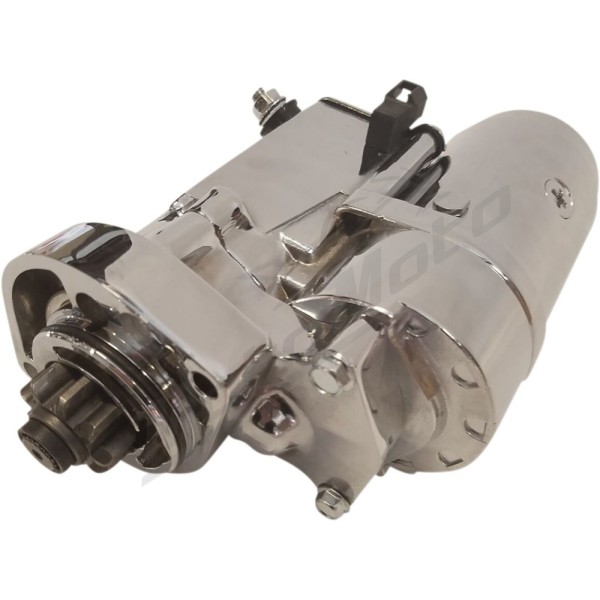

TERRY COMPONENTS 2.0 KW Starter Motor Big Dog Bulldog / Chopper / Coyote / K9 / Mastiff / Mutt / Pitbull / Ridgeback / Wolf 1917 05-11

Features:

• Solenoid plunger, return damper and springs are replaced with stronger components
• Clutch shaft and rollers are replaced with precision-ground and hardened parts for longer service life
• All components are assembled with a special lube for starter roller clutch applications
• CNC-machined billet mounting noses are held together with aerospace fasteners
• After assembly, all starters go to a dyno test including hi-low voltage, stall torque, solenoid engagement, amperage draw, load test, maximum rpm and motor impulse wave form
• Starters have a 4.4:1 gear reduction and produce 46% more cranking torque than the stock starter
• Will start any monster motor (for best results, use with Terry battery cables and a battery with 300+ cold cranking amps like the Drag Specialties battery).
• Made in the USA
• Will require spacer block part # DS-196233 when used on '99-'06 FLT models. On Softail, Dyna and FXR models, you must relocate oil lines and some wiring.
  Fit the models:

  BIG DOG	BULLDOG 1917	2006
  BIG DOG	BULLDOG 1917	2007
  BIG DOG	BULLDOG 1917	2008
  BIG DOG	BULLDOG 1917	2009
  BIG DOG	BULLDOG 1917	2010
  BIG DOG	BULLDOG 1917	2005
  BIG DOG	BULLDOG 1917	2011
  BIG DOG	BULLDOG BAGGER 1917	2011
  BIG DOG	BULLDOG BAGGER 1917	2010
  BIG DOG	CHOPPER 1917	2010
  BIG DOG	CHOPPER 1917	2005
  BIG DOG	CHOPPER 1917	2009
  BIG DOG	CHOPPER 1917	2008
  BIG DOG	CHOPPER 1917	2011
  BIG DOG	CHOPPER 1917	2007
  BIG DOG	CHOPPER 1917	2006
  BIG DOG	COYOTE 1917	2011
  BIG DOG	COYOTE 1917	2010
  BIG DOG	COYOTE 1917	2009
  BIG DOG	K9 1917	2008
  BIG DOG	K9 1917	2009
  BIG DOG	K9 1917	2007
  BIG DOG	K9 1917	2011
  BIG DOG	K9 1917	2006
  BIG DOG	K9 1917	2010
  BIG DOG	MASTIFF 1917	2010
  BIG DOG	MASTIFF 1917	2011
  BIG DOG	MASTIFF 1917	2009
  BIG DOG	MASTIFF 1917	2006
  BIG DOG	MASTIFF 1917	2005
  BIG DOG	MASTIFF 1917	2007
  BIG DOG	MASTIFF 1917	2008
  BIG DOG	MUTT 1917	2008
  BIG DOG	MUTT 1917	2009
  BIG DOG	MUTT 1917	2010
  BIG DOG	MUTT 1917	2011
  BIG DOG	PITBULL 1917	2010
  BIG DOG	PITBULL 1917	2009
  BIG DOG	PITBULL 1917	2008
  BIG DOG	PITBULL 1917	2005
  BIG DOG	PITBULL 1917	2011
  BIG DOG	PITBULL 1917	2006
  BIG DOG	PITBULL 1917	2007
  BIG DOG	RIDGEBACK 1917	2007
  BIG DOG	RIDGEBACK 1917	2006
  BIG DOG	RIDGEBACK 1917	2011
  BIG DOG	RIDGEBACK 1917	2005
  BIG DOG	RIDGEBACK 1917	2008
  BIG DOG	RIDGEBACK 1917	2009
  BIG DOG	RIDGEBACK 1917	2010
  BIG DOG	WOLF 1917	2010
  BIG DOG	WOLF 1917	2009
  BIG DOG	WOLF 1917	2011
