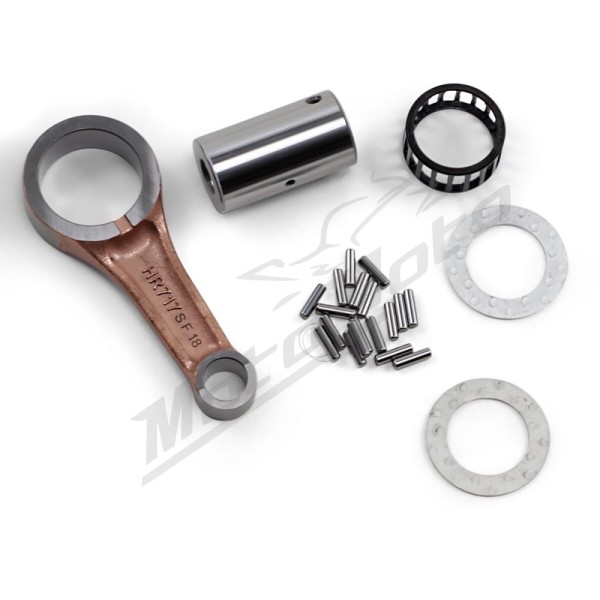

HOT RODS Connecting Rod Kit Yamaha WR / YZ 250 14-24

A premium quality, reinforced connecting rod set designed as a direct OEM replacement. If you demand maximum power and reliability from your motorcycle, this reinforced connecting rod set is the exact upgrade you need. Extremely durable and high quality.

Features:

• Certified 8620 AISI steel provides exceptional strength.
• Reinforced to eliminate surface stresses.
• The connecting rod journals are manufactured from hot rolled ASTM 4115 steel and surface hardened to a hardness of 58-62 Rc.
• Double honing provides an extremely round bearing surface for high-rpm reliability.
• Compatible with Hot Rod and OE crankshafts.
• Made in the USA.

Dimensions:

• Main bore diameter I.D. 38.000 mm.
• Width of the large end: 18,000 mm mm.
• Distance between the centers of the holes: 92,500 mm.
• Inner diameter of the small end 16,000 mm.
• Width of the small end: 15,000 mm.
• Pin length: 55,000 mm.
• Thickness of the support washer: 1,000 mm.

Fit the models:
