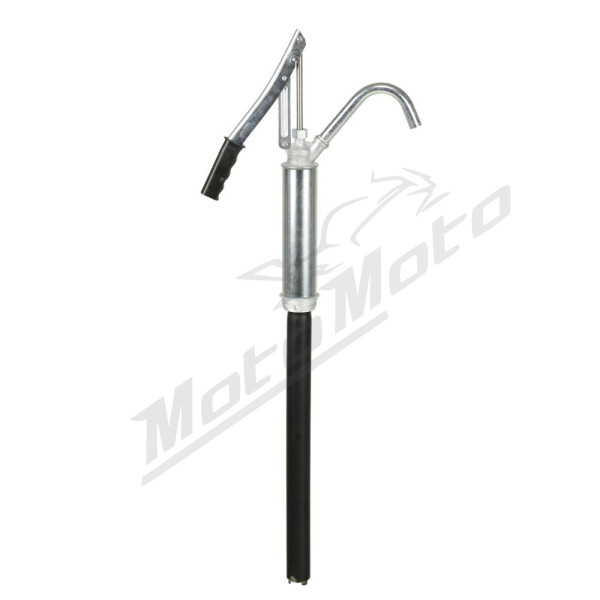

PRESSOL Barrel Pump

Features:

• Steelpipe-barrel pump.
• SRL 480-900-16 l/min-STAK.
• Specification.
• Packed in single carton box.
• With EAN bar code.
• Special notes.
• In case of leakage at the piston, retighten the union nut SW 22.
• Technical data.
• Delivery rate (l/stroke): 0,3.
• Delivery rate (l/min): 16.
• Pumping media: oils up to SAE 90.
• Application: container, for 60 / 200 / 220 l.
• Discharge: steel discharge spout, secured by cap screw.
• Length of suction tube (mm): 480-900.
• Surface treatment: all steel components are galvanized.
• Barrel screw coupling: G 2" male and 2" male buttress thread.
• Weight (kg): 1,73.
• Pump head (in contact with liquid): impact-resistant zinc die casting.
• Pump body (in contact with liquid): steel.
• Seals (in contact with liquid): PVC, NBR.
