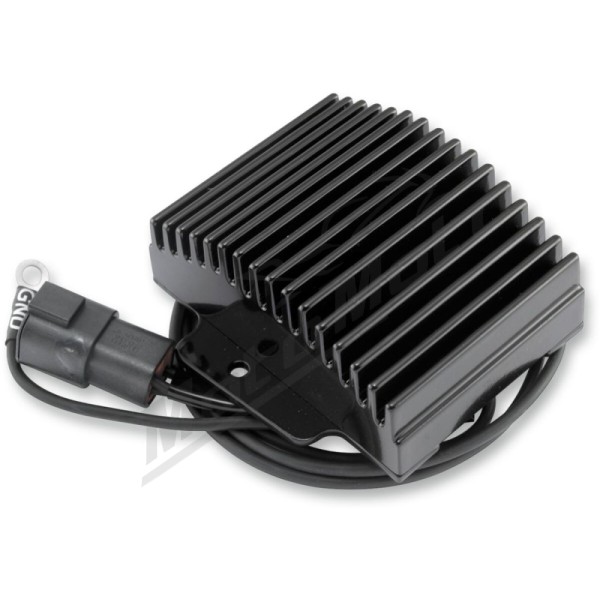

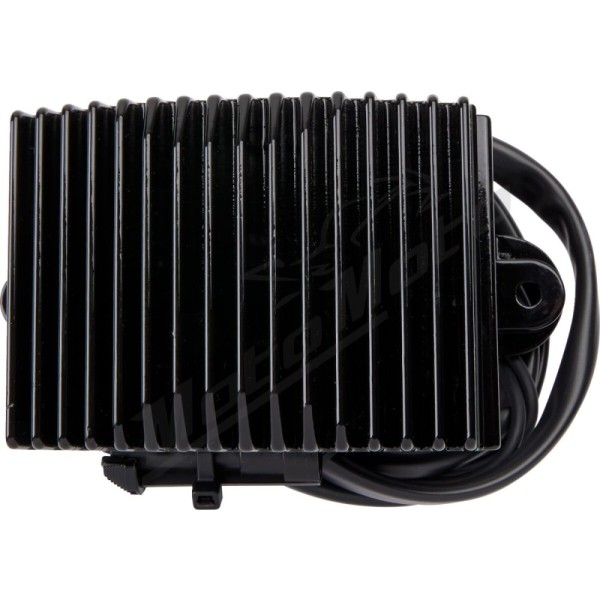

CYCLE ELECTRIC INC Rectifying Regulator 38/48A Harley Davidson FLHR / FLHT / FLTR / FLTRI 1450/1690 02-03

Features:

• OEM Part Number: 74505-02.
• Controls alternator voltage, unlike other rectifiers or regulators that are shunted to ground, causing peak stator current and higher temperatures.
• Cycle Electric rectifiers block current to control voltage; this reduces stator current, resulting in lower temperatures and lower motor resistance, meaning more efficient operation.
• Has permanently attached leads and a bracket to accommodate a standard stator plug. Before replacing the regulator, check that the stator is not shorted to ground and that the AC output is correct.
• 12V.
• 38 / 48A.

Fit the models:
