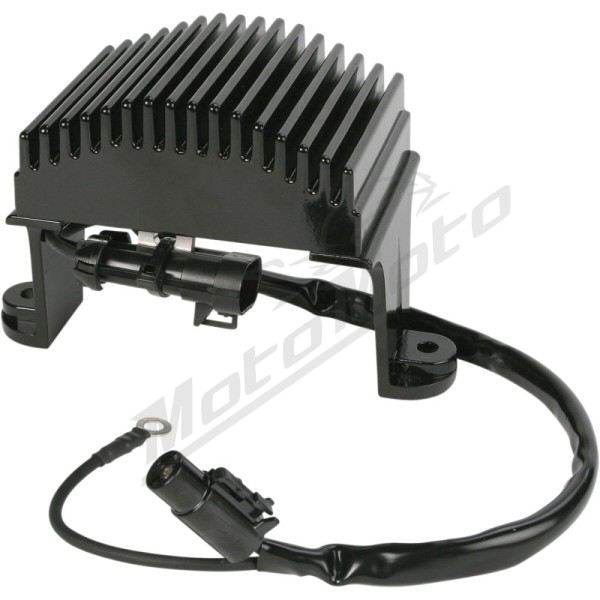

CYCLE ELECTRIC INC Rectifying Regulator 38/48A Harley Davidson FLHR / FLTRI / FLHTI / FLHT 1450/1690 04-05

Features:

• OEM Part Number: 74505-04
• Controls alternator voltage, unlike other rectifiers or regulators that are shunted to ground, causing peak stator current and higher temperatures.
• Cycle Electric rectifiers block current to control voltage; this reduces stator current, resulting in lower temperatures and lower motor resistance, meaning more efficient operation.
• Made in the USA.
• 12V.
• 38 / 48 A.
• Before replacing the regulator, check the stator for a short to ground and for proper AC output. If the stator is bad, a complete overhaul of the charging system is recommended.

Fit the models:
