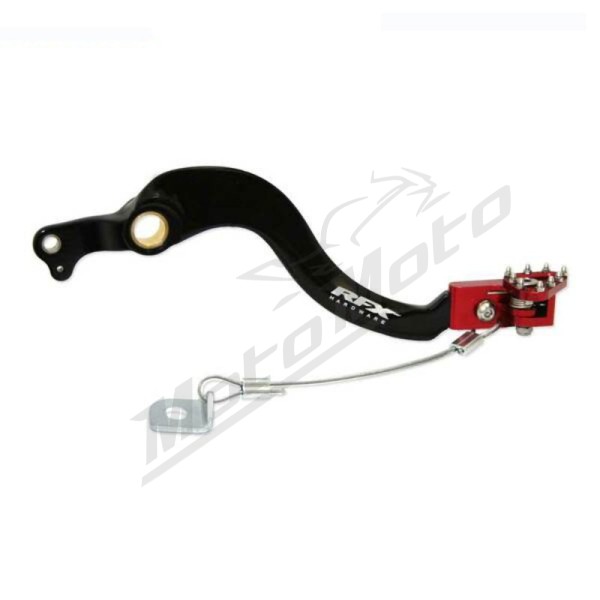

RFX Pro ST Rear Brake Lever (red) Honda CRF250R 04-09

Engineered and tested to the highest standards. Pro Series brake pedals are made from 7075-T6 aluminum and feature an OEM-style forged shaft, while a smooth shaft finish helps reduce wear associated with a ribbed design. Pro Series flex tips are machined from a CNC-machined billet of aluminum and feature a spring-loaded pivot tip that rotates upon impact, such as when riding a bike, to reduce damage. The tip also features steel teeth to help with traction in muddy conditions.

Features:

• New 7075-T6 Billet solid tip, with flow design.
• New 2 position adjustability on tip.
• New optional Hard Anodized tip version available for current models.
• New style brake snake with adjustable clamp.
• New Hard anodized black shaft to prevent corrosion and reduce wear.
• Replaceable Stainless Steel teeth for increased grip.
• Supplied complete with bearings and bushes for selected models.
• Laser etched logo.

Fitting Instructions:

• Start by taking note mark where the height if the pedal tip is in relation to the footpeg.
• Remove the R-clip or split pin from the rear of the brake bolt located behind the frame.
• Remove the pivot bolt holding the pedal to the frame.
• Detach the return spring from the pedal and leave hanging.
• Spin the pedal outwards exposing the split pin at the rear of the pedal clevis.
• Remove this split pin and the locating dowel, the rear brake pedal will now remove.
• Remove the oil seals from the old pedal clean and re-fit to the new pedal.
• Clean all the parts with a multi-purpose lube such as maxima MPPL, ready for re-installing.
• Re- fit the Brake clevis, Locating pin and split pin.
• Re-Fit the return spring.
• Apply some Maxima waterproof grease to the pivot bolt align the pivot hole and re-fit the bolt.
• Torque the pivot bolt to the required torque as per the owner’s manual.
• Re-fit the R-clip/Split pin to the rear of the pivot bolt.
• With the pedal now attached adjust the pedal height to the correct position and free play, do this by loosening the nut above the clevis and turning the plunger bolt inwards or outwards to suit.
• Now fit the brake snake.
• Japanese models- Remove the lower engine mount nut and washer, replace the old washer with the new washer which is attached to the brake snake.
•  Set the correct tension on the brake snake, remembering to allow for the pedal to extend down.
• Crimp the fitting together using pliers and trim excess cable.

Fits:
HONDA CRF 250 R (ME10) 250 2009
HONDA CRF 250 R (ME10) 250 2008
HONDA CRF 250 R (ME10) 250 2007
HONDA CRF 250 R (ME10) 250 2006
HONDA CRF 250 R (ME10) 250 2005
HONDA CRF 250 R (ME10) 250 2004
