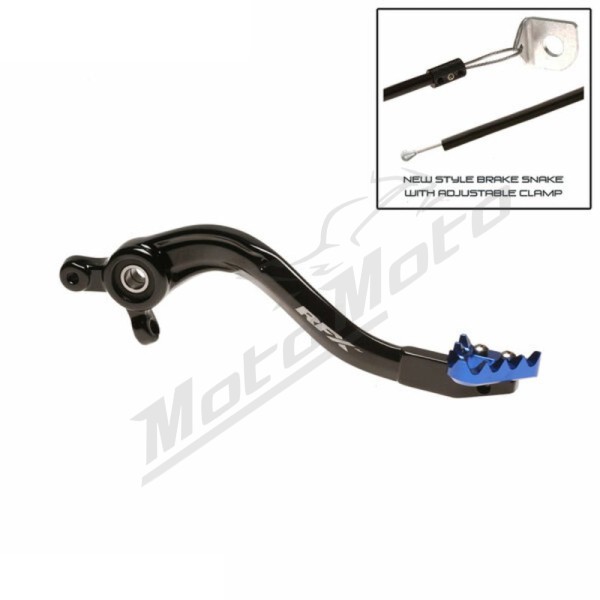

RFX Pro ST Rear Brake Lever Blue Gas Gas / KTM / Husqvarna 125/450 17-23

Pro Series Brake Pedals are manufactured from 7075-T6 aluminium and feature an OEM type forged shaft, a smooth finish on the shaft helps to reduce the wear associated with a ridged design. Pro Series Flexible tips are CNC machined billet aluminium and feature a spring loaded rotatable tip which under impact such as in a rut will spin to reduce damage. The tip also features sharp teeth to help grip in muddy conditions. Pro Series Flexible tips also incorporate a stop on the pivot tip, this stops the tip at 90 degrees of rotation preventing damage that can occur if the tip rotates under the clutch cover. Pro Series Brake Pedals also incorporate a cable brake snake, this helps prevent the pedal shaft being bent around in a collision.

Features:

• New 7075-T6 Billet solid tip, with flow design.
• New 2 position adjustability on tip.
• New optional Hard Anodized tip version available for current models.
• New style brake snake with adjustable clamp.
• New Hard anodized black shaft to prevent corrosion and reduce wear.
• Supplied complete with bearings and bushes for selected models.
• Laser etched logo.

 Fitting Instructions:

• Start by taking note mark where the height if the pedal tip is in relation to the footpeg.
• Remove the R-clip or split pin from the rear of the brake bolt located behind the frame.
• Remove the pivot bolt holding the pedal to the frame.
• Detach the return spring from the pedal and leave hanging.
• Spin the pedal outwards exposing the split pin at the rear of the pedal clevis.
• Remove this split pin and the locating dowel, the rear brake pedal will now remove.
• Remove the oil seals from the old pedal clean and re-fit to the new pedal.
• Clean all the parts with a multi-purpose lube such as maxima MPPL, ready for re-installing.
• Re- fit the Brake clevis, Locating pin and split pin.
• Re-Fit the return spring.
• Apply some Maxima waterproof grease to the pivot bolt align the pivot hole and re-fit the bolt.
• Torque the pivot bolt to the required torque as per the owner’s manual.
• Re-fit the R-clip/Split pin to the rear of the pivot bolt.
• With the pedal now attached adjust the pedal height to the correct position and free play, do this by loosening the nut above the clevis and turning the plunger bolt inwards or outwards to suit.
• Now fit the brake snake.
• Japanese models- Remove the lower engine mount nut and washer, replace the old washer with the new washer which is attached to the brake snake.
• KTM models- Remove the new washer which is attached to the brake snake, put this aside as it’s not required on the KTM, loop the cable around the lower engine mount and replace inside the crimp fitting.
•  Set the correct tension on the brake snake, remembering to allow for the pedal to extend down.
• Crimp the fitting together using pliers and trim excess cable.

Fits:
GAS GAS MC 350 F 350 2023
GAS GAS MC 250 F [250]
GAS GAS MC 250 F 250 2023
GAS GAS MC 450 F [450]
GAS GAS MC 450 F 450 2023
GAS GAS MC 450 F 450 2022
GAS GAS MC 450 F TROY LEE DESIGNS [450]
GAS GAS MC 450 F TROY LEE DESIGNS 450 2023
GAS GAS MC 125 [125]
GAS GAS MC 125 125 2023
KTM 450 EXC-F [450]
KTM 450 EXC-F 450 2023
KTM 450 EXC-F 450 2022
KTM 450 EXC-F SIX DAYS [450]
KTM 450 EXC-F SIX DAYS 450 2023
KTM 450 EXC-F SIX DAYS 450 2022
GAS GAS MC 250 F FACTORY EDITION [250]
GAS GAS MC 250 F FACTORY EDITION 250 2023
GAS GAS MC 450 F FACTORY EDITION [450]
GAS GAS MC 450 F FACTORY EDITION 450 2023
KTM 450 SX-F [450]
KTM 450 SX-F 450 2022
KTM 350 SX-F [350]
KTM 350 SX-F 350 2022
KTM 250 SX-F [250]
KTM 250 SX-F 250 2022
KTM 250 SX [250]
KTM 250 SX 250 2022
KTM 150 SX [150]
KTM 150 SX 150 2022
KTM 125 SX [125]
KTM 125 SX 125 2022
HUSQVARNA TC 125 [125]
HUSQVARNA TC 125 125 2022
HUSQVARNA FC 250 [250]
HUSQVARNA FC 250 250 2022
HUSQVARNA FC 350 350 2022
HUSQVARNA FC 350 350 2021
HUSQVARNA FC 450 [450]
HUSQVARNA FC 450 450 2022
HUSQVARNA FC 450 450 2021
GAS GAS MC 125 [125]
GAS GAS MC 125 125 2022
GAS GAS MC 125 125 2021
GAS GAS MC 250 F [250]
GAS GAS MC 250 F 250 2022
GAS GAS MC 250 F 250 2021
GAS GAS MC 350 F [350]
GAS GAS MC 350 F 350 2022
GAS GAS MC 450 F [450]
GAS GAS MC 450 F 450 2021
KTM 450 EXC-F SIX DAYS [450]
KTM 450 EXC-F SIX DAYS 450 2021
KTM 125 SX [125]
KTM 125 SX 125 2021
KTM 250 SX [250]
KTM 250 SX 250 2021
KTM 450 SX-F [450]
KTM 450 SX-F 450 2021
HUSQVARNA FC 250 [250]
HUSQVARNA FC 250 250 2021
HUSQVARNA TC 125 [125]
HUSQVARNA TC 125 125 2021
KTM 450 EXC-F [450]
KTM 450 EXC-F 450 2021
KTM 150 SX [150]
KTM 150 SX 150 2021
KTM 250 SX-F [250]
KTM 250 SX-F 250 2021
KTM 350 SX-F [350]
KTM 350 SX-F 350 2021
KTM 450 SX-F 450 2020
KTM 250 SX-F [250]
KTM 250 SX-F 250 2020
KTM 250 SX-F 250 2019
KTM 150 SX [150]
KTM 150 SX 150 2020
KTM 150 SX 150 2019
KTM 350 SX-F [350]
KTM 350 SX-F 350 2020
KTM 350 SX-F 350 2019
KTM 250 SX [250]
KTM 250 SX 250 2020
KTM 250 SX 250 2019
KTM 125 SX [125]
KTM 125 SX 125 2020
HUSQVARNA TC 125 [125]
HUSQVARNA TC 125 125 2020
HUSQVARNA TC 125 125 2019
HUSQVARNA FC 250 [250]
HUSQVARNA FC 250 250 2020
HUSQVARNA FC 250 250 2019
HUSQVARNA FC 450 [450]
HUSQVARNA FC 450 450 2020
HUSQVARNA FC 450 450 2019
KTM 450 EXC-F SIX DAYS [450]
KTM 450 EXC-F SIX DAYS 450 2020
HUSQVARNA FC 350 [350]
HUSQVARNA FC 350 350 2020
HUSQVARNA FC 350 350 2019
KTM 450 EXC-F [450]
KTM 450 EXC-F 450 2020
KTM 350 SX-F 350 2019
KTM 350 SX-F 350 2018
KTM 450 SX-F [450]
KTM 450 SX-F 450 2019
KTM 450 SX-F 450 2018
KTM 450 EXC-F SIX DAYS [450]
KTM 450 EXC-F SIX DAYS 450 2019
KTM 450 EXC-F SIX DAYS 450 2018
KTM 450 EXC-F [450]
KTM 450 EXC-F 450 2019
KTM 450 EXC-F 450 2018
HUSQVARNA TC 125 [125]
HUSQVARNA TC 125 125 2018
HUSQVARNA TC 125 125 2017
HUSQVARNA FC 250 [250]
HUSQVARNA FC 250 250 2018
HUSQVARNA FC 250 250 2017
HUSQVARNA FC 350 [350]
HUSQVARNA FC 350 350 2018
HUSQVARNA FC 450 [450]
HUSQVARNA FC 450 450 2018
HUSQVARNA FC 450 450 2017
KTM 150 SX [150]
KTM 150 SX 150 2018
KTM 250 SX [250]
KTM 250 SX 250 2018
KTM 250 SX-F [250]
KTM 250 SX-F 250 2018
KTM 125 SX [125]
KTM 125 SX 125 2018
HUSQVARNA TE 150 [150]
HUSQVARNA TE 150 150 2017
HUSQVARNA TX 125 125 2017
KTM 125 SX [125]
KTM 125 SX 125 2017
KTM 150 SX [150]
KTM 150 SX 150 2017
KTM 250 SX [250]
KTM 250 SX 250 2017
KTM 250 SX-F [250]
KTM 250 SX-F 250 2017
KTM 350 SX-F [350]
KTM 350 SX-F 350 2017
KTM 450 SX-F [450]
KTM 450 SX-F 450 2017
KTM 450 EXC-F SIX DAYS [450]
KTM 450 EXC-F SIX DAYS 450 2017
KTM 450 EXC-F [450]
KTM 450 EXC-F 450 2017
HUSQVARNA FC 350 [350]
HUSQVARNA FC 350 350 2017
