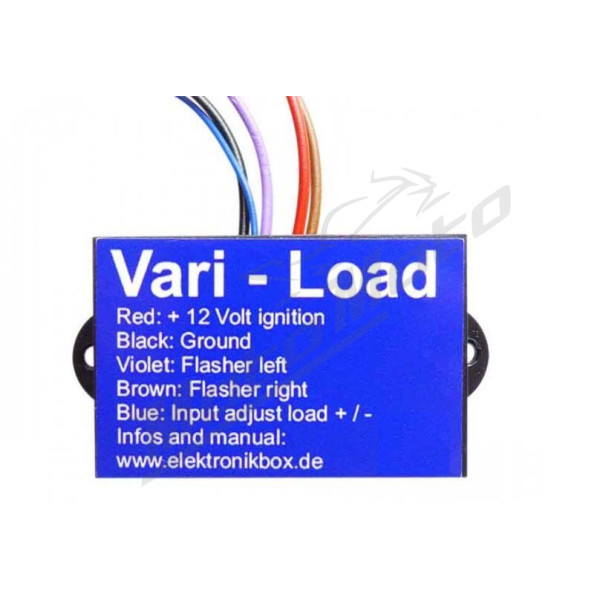

AXEL JOOST ELEKTRONIK VARI LOAD DIGITAL LOADEQUALIZER

This is a modern and smart solution to control the speed of the turn signals when replacing standard bulbs with LEDs.

Features:

• This is a programmable load regulator that allows you to use LED turn signals on any motorcycle.
• Simply connect the blue wire to +12 V and the load will slowly increase to approximately 10 watts.
• By connecting the blue wire to ground (ground), the load will decrease until it reaches 0 watts.
• When the wire is removed from voltage or ground, the set value is automatically saved and will be used the next time the device is turned on.
• A full cycle through all possible values ​​takes about 20 seconds.
• The integrated LED indicator flashes up to 50 times when the power changes, thus numerically indicating the set value. When the limit (0 W or 10 W) is reached, the LED lights up continuously.
• Dimensions: 56 mm x 37 mm x 17 mm.
• Housing material: ABS plastic.
• Input voltage: 7 - 18 V.
• Connections: Inputs - 0.14 mm², outputs - 0.75 mm².
• Output power: From 2 x 1 W to 2 x 15 W.
• Maximum ambient temperature: 80 °C.
