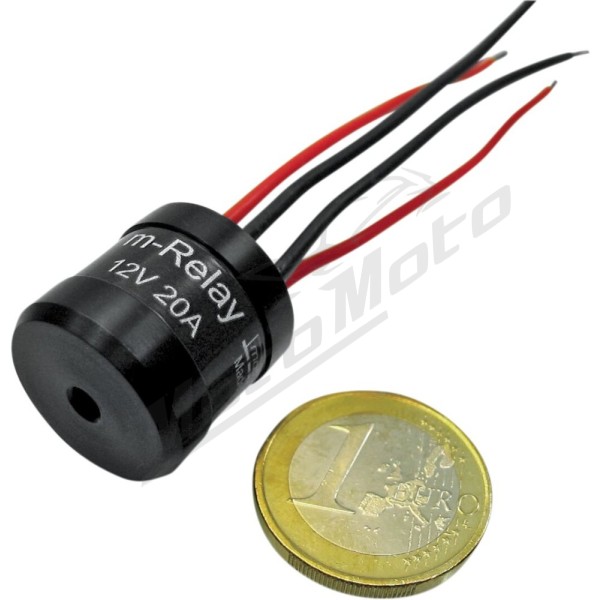

MOTOGADGET Mo-Relay universal relay

mo.relay is a very small relay designed to control almost all electrical consumers. High beam, low beam, horn, ignition and more can be switched easily and with virtually no power loss.

High operating currents are routed close to the consumer (e.g. the lamp), so only a minimal control current needs to pass through the ignition switch or handlebar controls. This prevents failures and burnt contacts. In addition, reduced line losses noticeably improve lighting brightness – a clear safety advantage.

A central threaded hole on the top of the housing allows easy installation in almost any location, even when several mo.relay units are used. The housing is CNC-machined from solid aluminum and anodized black. It is completely waterproof and vibration-resistant.

Note:

• The mo.relay is not suitable for push-button control (use mo.unit instead)

• The mo.relay is not a flasher relay (use mo.flash, mo.wave, mo.stop, or mo.relay+)

Technical data

• Diameter without cable: 19 mm

• Height: 19 mm
