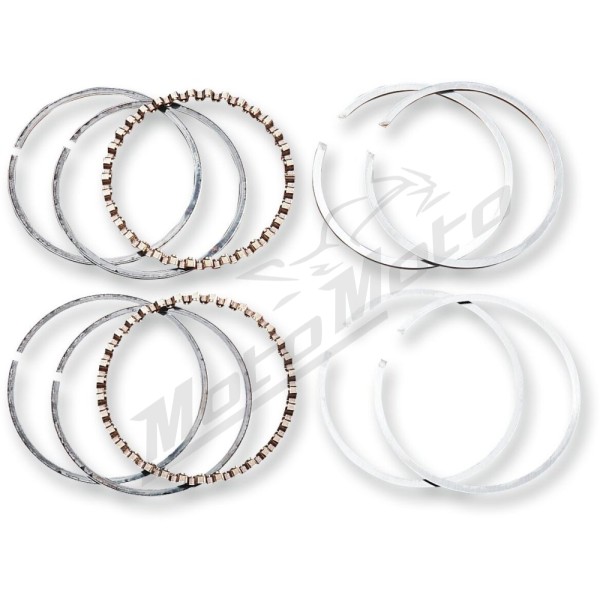

HASTINGS Replacement Piston Rings Harley Davidson FLD / FLHR / FLHRC / FLHTC / FLHTCU / FLHX / FLRT / FLS / FXDF / FXSBK 1690-1750 03-17

Features:

• Includes top compression rings, second compression rings, and oil control rings.
• Top Compression Rings are Barrel Face.
• Helps in the the heat transfer process between the piston and cylinder wall
• Controls combustion chamber gases allowing the piston to transfer the energy of the expanding combustion gases, to the crankshaft.
• Second Compression Ring are Napier.
• Reverse twist ring along with a taper-machined ring face duplicates the OD bottom side scraping edge of a positive twist torsional ring.
• Promotes side sealing that prevents oil from being forced under and behind the ring resulting in better oil economy.
• Oil Control Rings are Three Piece Flex Vent.
• Three-piece design allows rails to be manufactured with a small cross sectional area for better conformability to bore.
• Provides uniform pressure through four steel rails and two expanders assuring positive oil control.
• Made in the USA.
• Includes enough rings for two pistons (unless noted).
• Two rings per groove, except for the rails that will be two rail rings per one expander ring.

Fit the models:
