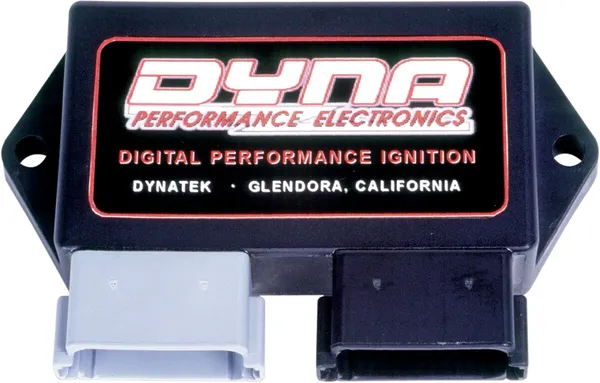

DYNATEK-HARLEY Dyna 2000TC Programmable Digital Performance Ignition Module Harley Davidson FLHR / FLHRSEI / FLHT 1340-1690cc 99-03

Features:

• Single-fire, fully programmable performance ignition.
• Sixteen programmable advance curves in three groups: stock to slightly modified motors, heavily modified motors and insanely modified motors.
• Eight rev limiter settings in 250 rpm steps from 5750-7250 rpm.
• All functions offer full digital accuracy.
• Compatible with stock and performance coils - less than 1 ohm resistance.
• Coil current constantly monitored to provide constant full-spark energy.
• Uses all stock sensors and connectors.
• Built-in reverse battery and spike protection.
• Data recording includes total engine hours, time wide-open throttle, longest time operating at wide-open throttle, max rpm, seconds near rev limit and number of engine starts.
• PC programmability makes possible an eight-point, fully definable, wide-open throttle curve and a fully definable part-throttle curve, programmable rev limit in 50 rpm steps, 0-5 programmable dead-cranking revs, total of +/- 10° rear cylinder offset, programmable rev limiter, and security lock out (pin # activated).
• Made in the USA.

Fit the models:
