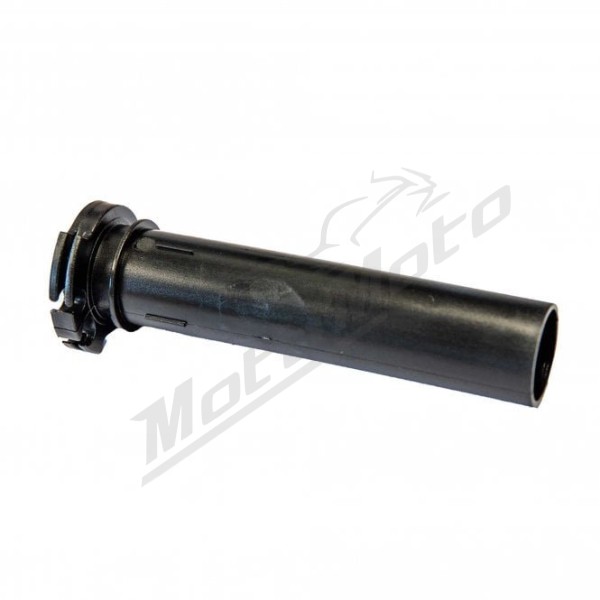

RFX Sport Series Throttle Tubes are an exact replacement part at a fraction of the cost of genuine parts. They are made from a Teflon coated Nylon Fabric which provide you with a smooth action.
Features:
- Replacement throttle tubes for all popular off road bikes.
- Uses the same cam profile as the OEM part for proper throttle control.
- Teflon coated Nylon Fabric provides smooth action.
- Will not scar bars like aluminium tubes.
- Open end design for use with aluminium hand guards if required.
Fitting Instructions
- Slide the rubber boot down and disassemble the throttle housing, remove the old throttle tube taking care not to damage the throttle cables.
- Carefully remove grip from the old throttle tube if required.
- Inspect the cables and housing for excess damage or wear, clean and lube them or replace if required.
- Clean the handlebar and inspect for damage where the old throttle tube has been spinning on the bar if a ridge is present replace the handlebars.
- Slide the new throttle tube on the handlebar and lube using a penetrating lubricant preferably Maxima MPPL (do not use grease as this attracts dirt and makes the throttle stick after a short period of time).
- Re-assemble the throttle cables and housing again using some penetrating lubricant.
- Tighten the throttle housing in the correct position on the handlebars.
- Adjust the cable to the required (free play amount) of your liking.
- Rotate the handlebars to their maximum position to check proper operation of the throttle and correct cable routing, some re-adjustment of the cable may be required.
- Slide the rubber boot back over the housing.
- Cover the hole in the end of the grip with some electrical tape (To stop glue entering the throttle barrel) and apply a small amount of RFX grip glue to the outer end of the throttle tube on the outside diameter.
- Apply a small amount of RFX grip glue to the inside of the new grip and slide onto the tube.
- Twist the grip to the correct position and leave to dry.
- Apply RFX safety grip wire if needed.
- After the glue has dried again check proper operation of the throttle.
Fits:
YAMAHA YZ 450 F 450 2026
YAMAHA YZ 450 F 450 2025
YAMAHA YZ 450 F 450 2024
SUZUKI RM-Z 250 [250]
SUZUKI RM-Z 250 250 2026
SUZUKI RM-Z 250 250 2025
SUZUKI RM-Z 450 [450]
SUZUKI RM-Z 450 450 2026
SUZUKI RM-Z 450 450 2025
SUZUKI RM-Z 450 450 2024
KAWASAKI KX 250 [250]
KAWASAKI KX 250 250 2026
KAWASAKI KX 250 250 2025
KAWASAKI KX 250 250 2024
KAWASAKI KX 250 X [250]
KAWASAKI KX 250 X 250 2026
KAWASAKI KX 250 X 250 2025
KAWASAKI KX 250 X 250 2024
KAWASAKI KX 450 [450]
KAWASAKI KX 450 450 2026
KAWASAKI KX 450 450 2025
KAWASAKI KX 450 450 2024
KAWASAKI KX 450 X [450]
KAWASAKI KX 450 X 450 2026
KAWASAKI KX 450 X 450 2025
KAWASAKI KX 450 X 450 2024
SUZUKI RM-Z 250 250 2024
SUZUKI RM-Z 250 250 2023
SUZUKI RM-Z 250 250 2022
SUZUKI RM-Z 450 [450]
SUZUKI RM-Z 450 450 2023
KAWASAKI KX 250 [250]
KAWASAKI KX 250 250 2023
KAWASAKI KX 250 X [250]
KAWASAKI KX 250 X 250 2023
KAWASAKI KX 450 [450]
KAWASAKI KX 450 450 2023
KAWASAKI KX 450 X [450]
KAWASAKI KX 450 X 450 2023
YAMAHA YZ 450 F [450]
YAMAHA YZ 450 F 450 2023
YAMAHA YZ 450 F 450 2022
YAMAHA YZ 250 F [250]
YAMAHA YZ 250 F 250 2023
YAMAHA YZ 250 F 250 2022
YAMAHA WR 450 F [450]
YAMAHA WR 450 F 450 2023
YAMAHA WR 450 F 450 2022
FANTIC XEF 250 [250]
FANTIC XEF 250 250 2023
FANTIC XEF 450 [450]
FANTIC XEF 450 450 2023
FANTIC XXF 250 [250]
FANTIC XXF 250 250 2023
FANTIC XXF 450 [450]
FANTIC XXF 450 450 2023
KAWASAKI KX 250 (KX252C) [250]
KAWASAKI KX 250 (KX252C) 250 2022
KAWASAKI KX 450 (KX450J) [450]
KAWASAKI KX 450 (KX450J) 450 2022
SUZUKI RM-Z 450 450 2022
SUZUKI RM-Z 450 450 2021
SUZUKI RM-Z 450 450 2020
FANTIC XEF 250 [250]
FANTIC XEF 250 250 2022
FANTIC XEF 450 [450]
FANTIC XEF 450 450 2022
FANTIC XXF 250 [250]
FANTIC XXF 250 250 2022
FANTIC XXF 450 [450]
FANTIC XXF 450 450 2022
YAMAHA YZ 250 F (CG40) [250]
YAMAHA YZ 250 F (CG40) 250 2021
YAMAHA YZ 250 F (CG40) 250 2020
KAWASAKI KX 250 (KX252B) [250]
KAWASAKI KX 250 (KX252B) 250 2021
KAWASAKI KX 250 (KX252B) 250 2020
SUZUKI RM-Z 250 [250]
SUZUKI RM-Z 250 250 2021
SUZUKI RM-Z 250 250 2020
YAMAHA WR 450 F [450]
YAMAHA WR 450 F 450 2021
YAMAHA YZ 450 F (CJ23) [450]
YAMAHA YZ 450 F (CJ23) 450 2021
KAWASAKI KX 450 (KX450J) [450]
KAWASAKI KX 450 (KX450J) 450 2021
YAMAHA YZ 250 FX [250]
YAMAHA YZ 250 FX 250 2021
YAMAHA YZ 250 FX 250 2020
YAMAHA WR 450 F (RE45) [450]
YAMAHA WR 450 F (RE45) 450 2020
YAMAHA YZ 450 FX [450]
YAMAHA YZ 450 FX 450 2020
KAWASAKI KX 450 (KX450J) 450 2020
KAWASAKI KX 450 (KX450J) 450 2019
YAMAHA YZ 450 F (CJ23) [450]
YAMAHA YZ 450 F (CJ23) 450 2020
YAMAHA YZ 450 F (CJ23) 450 2019
SUZUKI RM-Z 450 [450]
SUZUKI RM-Z 450 450 2019
SUZUKI RM-Z 450 450 2018
SUZUKI RM-Z 250 [250]
SUZUKI RM-Z 250 250 2019
SUZUKI RM-Z 250 250 2018
KAWASAKI KX 250 (KX252A) [250]
KAWASAKI KX 250 (KX252A) 250 2019
YAMAHA YZ 250 FX [250]
YAMAHA YZ 250 FX 250 2019
YAMAHA YZ 450 FX [450]
YAMAHA YZ 450 FX 450 2019
YAMAHA YZ 450 FX 450 2018
YAMAHA WR 450 F (RE45) [450]
YAMAHA WR 450 F (RE45) 450 2019
YAMAHA WR 450 F (RE45) 450 2018
YAMAHA YZ 250 F (CG40) [250]
YAMAHA YZ 250 F (CG40) 250 2019
YAMAHA WR 450 F ENDURO GP (RE45) [450]
YAMAHA WR 450 F ENDURO GP (RE45) 450 2018
YAMAHA YZ 450 F (CJ22) [450]
YAMAHA YZ 450 F (CJ22) 450 2018
YAMAHA YZ 250 F (CG39) [250]
YAMAHA YZ 250 F (CG39) 250 2018
KAWASAKI KX 250 F (KX252A) [250]
KAWASAKI KX 250 F (KX252A) 250 2018
KAWASAKI KX 450 F (KX450H) [450]
KAWASAKI KX 450 F (KX450H) 450 2018
YAMAHA YZ 250 FX 250 2018
YAMAHA YZ 250 FX 250 2017
YAMAHA YZ 250 FX 250 2016
YAMAHA WR 450 F [450]
YAMAHA WR 450 F 450 2017
YAMAHA WR 450 F 450 2016
YAMAHA YZ 250 F (CG39) [250]
YAMAHA YZ 250 F (CG39) 250 2017
YAMAHA YZ 450 FX [450]
YAMAHA YZ 450 FX 450 2017
YAMAHA YZ 450 FX 450 2016
YAMAHA YZ 450 F (CJ21) [450]
YAMAHA YZ 450 F (CJ21) 450 2017
YAMAHA YZ 450 F (CJ21) 450 2016
KAWASAKI KX 250 F (KX252A) [250]
KAWASAKI KX 250 F (KX252A) 250 2017
KAWASAKI KX 450 F (KX450H) [450]
KAWASAKI KX 450 F (KX450H) 450 2017
KAWASAKI KX 450 F (KX450H) 450 2016
SUZUKI RM-Z 250 [250]
SUZUKI RM-Z 250 250 2017
SUZUKI RM-Z 250 250 2016
SUZUKI RM-Z 450 [450]
SUZUKI RM-Z 450 450 2017
SUZUKI RM-Z 450 450 2016
YAMAHA YZ 250 F (CG34) [250]
YAMAHA YZ 250 F (CG34) 250 2016
KAWASAKI KX 250 F (KX250Z) [250]
KAWASAKI KX 250 F (KX250Z) 250 2016
YAMAHA WR 450 F (DJ03) [450]
YAMAHA WR 450 F (DJ03) 450 2015
YAMAHA YZ 250 F (CG34) 250 2015
YAMAHA YZ 250 F (CG34) 250 2014
YAMAHA YZ 250 FX [250]
YAMAHA YZ 250 FX 250 2015
YAMAHA YZ 450 F (CJ18) [450]
YAMAHA YZ 450 F (CJ18) 450 2015
YAMAHA YZ 450 F (CJ18) 450 2014
KAWASAKI KX 250 F (KX250Z) [250]
KAWASAKI KX 250 F (KX250Z) 250 2015
KAWASAKI KX 250 F (KX250Z) 250 2014
KAWASAKI KX 250 F (KX250Z) 250 2013
KAWASAKI KX 450 F (KX450F) [450]
KAWASAKI KX 450 F (KX450F) 450 2015
KAWASAKI KX 450 F (KX450F) 450 2014
KAWASAKI KX 450 F (KX450F) 450 2013
SUZUKI RM-Z 250 [250]
SUZUKI RM-Z 250 250 2015
SUZUKI RM-Z 250 250 2014
SUZUKI RM-Z 450 [450]
SUZUKI RM-Z 450 450 2015
SUZUKI RM-Z 450 450 2014
SUZUKI RM-Z 450 450 2013
YAMAHA WR 450 F (DJ03) [450]
YAMAHA WR 450 F (DJ03) 450 2014
YAMAHA WR 450 F (DJ03) 450 2013
YAMAHA YZ 250 F (CG33) [250]
YAMAHA YZ 250 F (CG33) 250 2013
YAMAHA YZ 450 F (CJ15) [450]
YAMAHA YZ 450 F (CJ15) 450 2013
SUZUKI RM-Z 250 250 2013
SUZUKI RM-Z 250 250 2012
SUZUKI RM-Z 250 250 2011
YAMAHA WR 450 F (DJ03) [450]
YAMAHA WR 450 F (DJ03) 450 2012
YAMAHA YZ 450 F (CJ15) [450]
YAMAHA YZ 450 F (CJ15) 450 2012
YAMAHA YZ 450 F (CJ15) 450 2011
YAMAHA YZ 450 F (CJ15) 450 2010
YAMAHA YZ 250 F (CG33) [250]
YAMAHA YZ 250 F (CG33) 250 2012
YAMAHA YZ 250 F (CG33) 250 2011
YAMAHA YZ 250 F (CG33) 250 2010
KAWASAKI KX 250 F (KX250Y) [250]
KAWASAKI KX 250 F (KX250Y) 250 2012
KAWASAKI KX 250 F (KX250Y) 250 2011
KAWASAKI KX 450 F (KX450F) [450]
KAWASAKI KX 450 F (KX450F) 450 2012
SUZUKI RM-Z 450 [450]
SUZUKI RM-Z 450 450 2012
SUZUKI RM-Z 450 450 2011
YAMAHA WR 450 F (CJ13) [450]
YAMAHA WR 450 F (CJ13) 450 2011
YAMAHA WR 450 F (CJ13) 450 2010
KAWASAKI KX 450 F (KX450E) [450]
KAWASAKI KX 450 F (KX450E) 450 2011
KAWASAKI KX 450 F (KX450E) 450 2010
KAWASAKI KX 250 F (KX250X) [250]
KAWASAKI KX 250 F (KX250X) 250 2010
SUZUKI RM-Z 250 250 2010
SUZUKI RM-Z 250 250 2009
SUZUKI RM-Z 250 250 2008
SUZUKI RM-Z 450 [450]
SUZUKI RM-Z 450 450 2010
SUZUKI RM-Z 450 450 2009
SUZUKI RM-Z 450 450 2008
YAMAHA YZ 250 F (CG27) [250]
YAMAHA YZ 250 F (CG27) 250 2009
YAMAHA YZ 250 F (CG27) 250 2008
YAMAHA YZ 250 F (CG27) 250 2007
YAMAHA YZ 450 F (CJ10) [450]
YAMAHA YZ 450 F (CJ10) 450 2009
YAMAHA YZ 450 F (CJ10) 450 2008
YAMAHA YZ 450 F (CJ10) 450 2007
YAMAHA WR 450 F (CJ13) [450]
YAMAHA WR 450 F (CJ13) 450 2009
YAMAHA WR 450 F (CJ13) 450 2008
KAWASAKI KX 250 F (KX250W) [250]
KAWASAKI KX 250 F (KX250W) 250 2009
KAWASAKI KX 450 F (KX450E) [450]
KAWASAKI KX 450 F (KX450E) 450 2009
KAWASAKI KX 250 F (KX250T) [250]
KAWASAKI KX 250 F (KX250T) 250 2008
KAWASAKI KX 250 F (KX250T) 250 2007
KAWASAKI KX 450 F (KX450D) [450]
KAWASAKI KX 450 F (KX450D) 450 2008
YAMAHA WR 450 F (CJ12) [450]
YAMAHA WR 450 F (CJ12) 450 2007
KAWASAKI KX 450 F (KX450D) 450 2007
KAWASAKI KX 450 F (KX450D) 450 2006
SUZUKI RM-Z 450 [450]
SUZUKI RM-Z 450 450 2007
SUZUKI RM-Z 450 450 2006
SUZUKI RM-Z 450 450 2005
SUZUKI RM-Z 250 [250]
SUZUKI RM-Z 250 250 2007
SUZUKI RM-Z 250 250 2006
SUZUKI RM-Z 250 250 2005
YAMAHA YZ 450 F (CJ10) [450]
YAMAHA YZ 450 F (CJ10) 450 2006
YAMAHA YZ 250 F (CG25) [250]
YAMAHA YZ 250 F (CG25) 250 2006
YAMAHA WR 450 F (CJ09) [450]
YAMAHA WR 450 F (CJ09) 450 2006
KAWASAKI KX 250 F (KX250T) [250]
KAWASAKI KX 250 F (KX250T) 250 2006
YAMAHA YZ 250 F (CG21) [250]
YAMAHA YZ 250 F (CG21) 250 2005
YAMAHA YZ 450 F (CJ06) [450]
YAMAHA YZ 450 F (CJ06) 450 2005
YAMAHA WR 450 F (CJ07) [450]
YAMAHA WR 450 F (CJ07) 450 2005
KAWASAKI KX 250 F (KX250N) [250]
KAWASAKI KX 250 F (KX250N) 250 2005
KAWASAKI KX 250 F (KX250N) 250 2004
YAMAHA YZ 250 F (CG18) [250]
YAMAHA YZ 250 F (CG18) 250 2004
YAMAHA YZ 450 F (CJ05) [450]
YAMAHA YZ 450 F (CJ05) 450 2004
YAMAHA WR 450 F (CJ04) [450]
YAMAHA WR 450 F (CJ04) 450 2004
SUZUKI RM-Z 250 250 2004
YAMAHA YZ 250 F (CG14) [250]
YAMAHA YZ 250 F (CG14) 250 2003
YAMAHA YZ 450 F (CJ03) [450]
YAMAHA YZ 450 F (CJ03) 450 2003
YAMAHA WR 450 F (CJ04) [450]
YAMAHA WR 450 F (CJ04) 450 2003
YAMAHA YZ 250 F (CG10) [250]
YAMAHA YZ 250 F (CG10) 250 2002
YAMAHA YZ 250 F (CG10) 250 2001
YAMAHA YZ 426 F (CJ01) [426]
YAMAHA YZ 426 F (CJ01) 426 2002
YAMAHA YZ 426 F (CJ01) 426 2001
YAMAHA YZ 426 F (CJ01) 426 2000
YAMAHA WR 400 F (CH04) [400]
YAMAHA WR 400 F (CH04) 400 2002
YAMAHA WR 400 F (CH04) 400 2001
YAMAHA WR 400 F (CH04) 400 2000
YAMAHA WR 400 F (CH04) 400 1999
YAMAHA WR 426 F (CJ02) [426]
YAMAHA WR 426 F (CJ02) 426 2002
YAMAHA WR 426 F (CJ02) 426 2001
YAMAHA YZ 400 F (CH03) [400]
YAMAHA YZ 400 F (CH03) 400 1999
YAMAHA YZ 400 F (CH01) [400]
YAMAHA YZ 400 F (CH01) 400 1998
YAMAHA WR 400 F (CH02) [400]
YAMAHA WR 400 F (CH02) 400 1998
