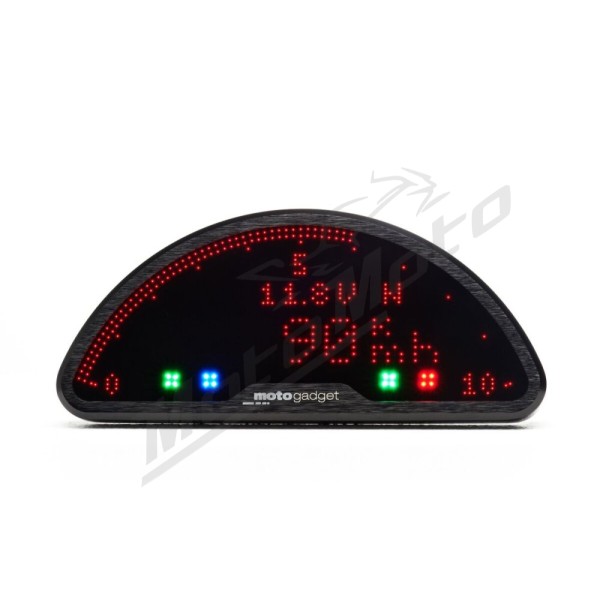

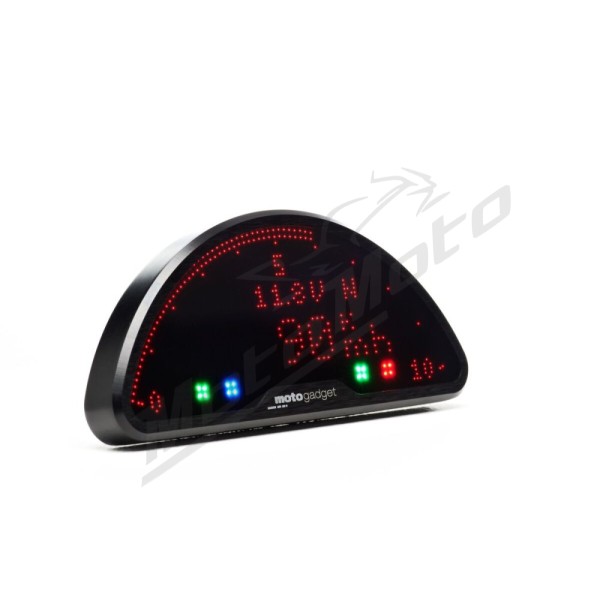

MOTOGADGET Motoscope Pro Digital Speedometer

The latest digital dashboard generation from motogadget in ultra-flat design with optimal readability and automatic brightness adjustment.

Universal use on all carburetor models with a breakout box. Vehicle-specific Plug & Ride variants are available.

Indicator lights

• High beam
• Neutral
• Universal warning light & text messages
• Blinker left / right

Speed range

• Drag indicator
• adjustable: 0 - 6, 8, 10, 12, 14, 16, 18 krpm

Shift lightning

• adjustable: 0 - 20 krpm

Display

• Gear indicator
• Speed 999 [km/h/mph]
• Trip A 999.9 [km/mi]
• Trip B 999.9 [km/mi]
• Odometer 999999 [km/mi]
• Speed 0-14,000 [rpm]
• Oil temperature 0-200 [°C / °F]
• Water temperature 0-200 [°C/°F]
• Air temperature -20 - 100 [°C/°F]
• Oil pressure 0 - 10.0 [bar/psi]
• Operating hours counter 9999 [h]
• Travel time [h:mm:ss]
• Clock
• Time 0-100 km/h - 99.99 s
• Acceleration 0 - 2.00 [G]
• Average speed 999 [km/h/mph]
• Maximum speed 999 [km/h/mph]
• Maximum positive acceleration 0 - 2.00 [G]
• Maximum negative acceleration 0 - -2.00 [G]
• Maximum speed 20000 [rpm]
• On-board voltage 9 - 15 [V]
• Fuel gauge 0 - 100 [%]

Configurable warning messages

• Oil temperature
• Water temperature
• On-board voltage
• Air temperature
• Oil pressure
• Tank capacity
• Service Interwall
• Speed warning (gearshift flash)

Technical data

• Length/width/depth: 109mm / 47mm / 11mm
• Weight with cable: approx. 100g
• Fastening: 2 x M3 threaded bush
• Current consumption during operation: max 200 mA
• Current consumption in idle state: 400µA
• Operating voltage: 9 V - 18 V
• Operating temperature: -20°... +80°C
