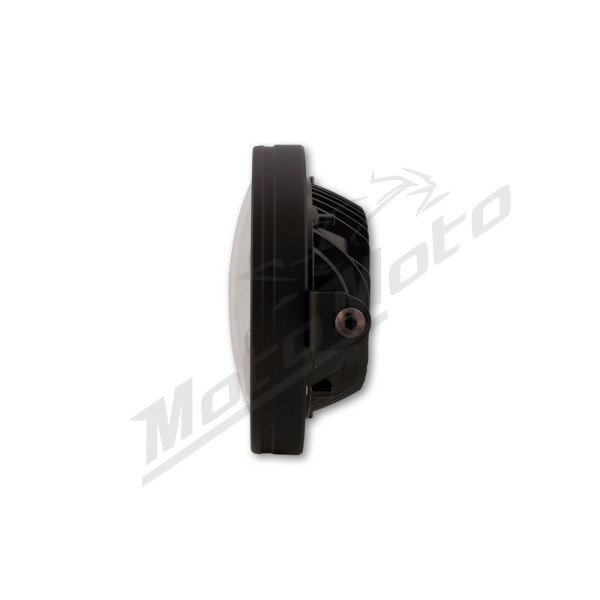

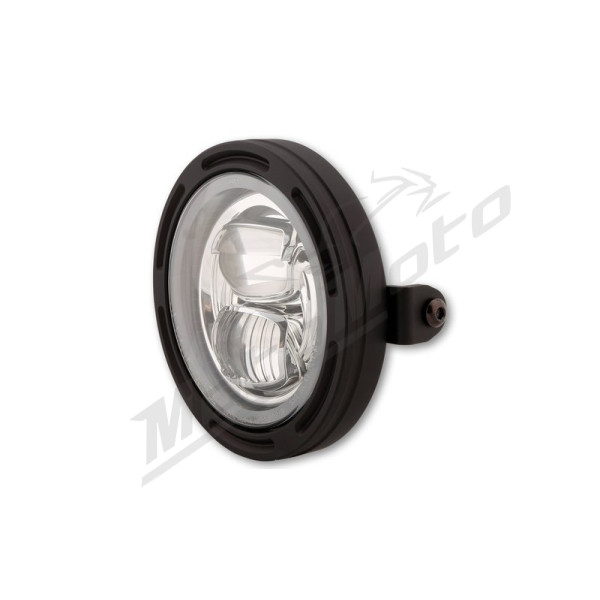

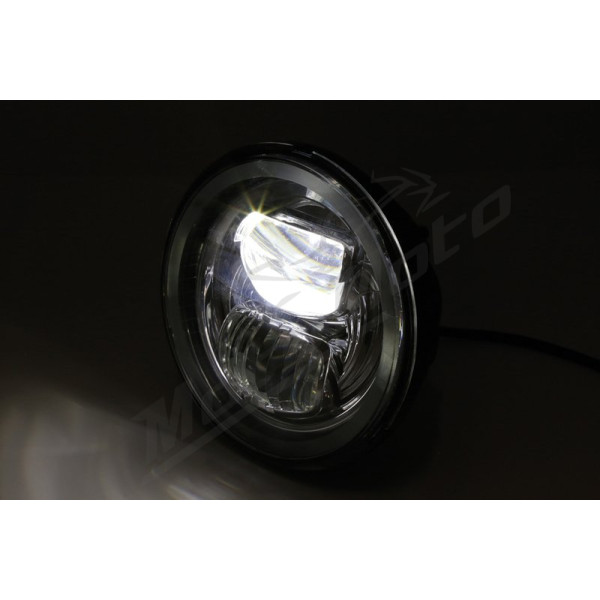

HIGHSIDER Pro Frame-R2 Type 7 Universal Headlight Ø165mm

This is a recognized German brand, developed by motorcyclists themselves, focusing on exclusive style, high quality and innovation. All products are designed according to strict engineering standards, ensuring a long service life and flawless operation.

Features:

• Mounting WITHOUT a lamp housing.
• Improves cooling.
• Many mounting options.
• Flat mounting.
• Modern optics, stylish and innovative.
• Black reflector with clear glass.

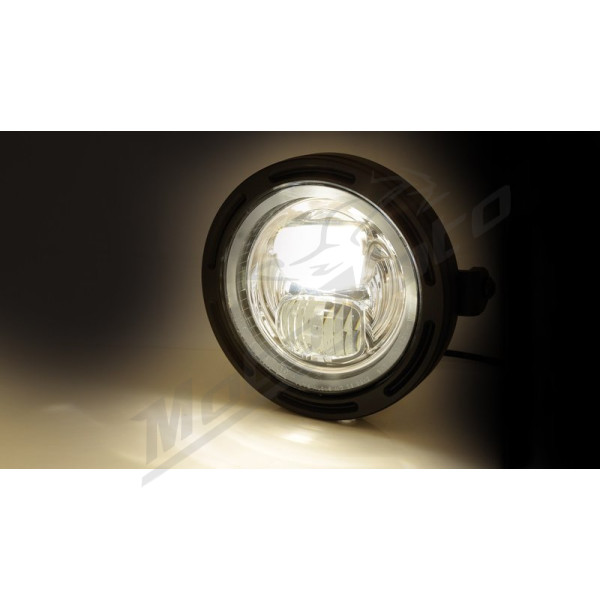

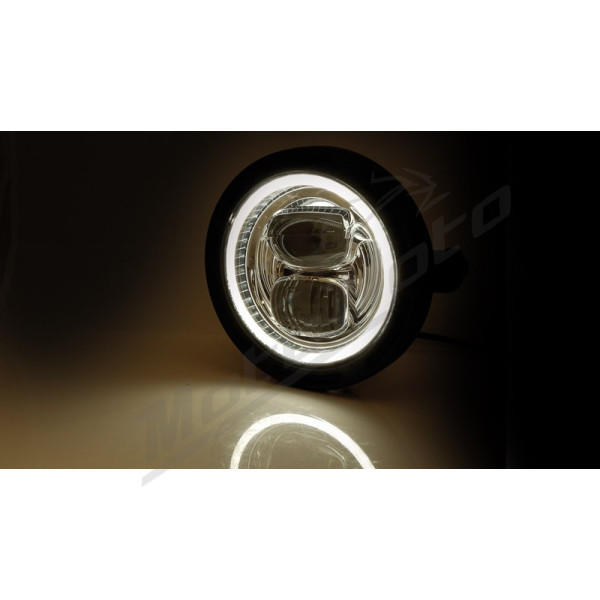

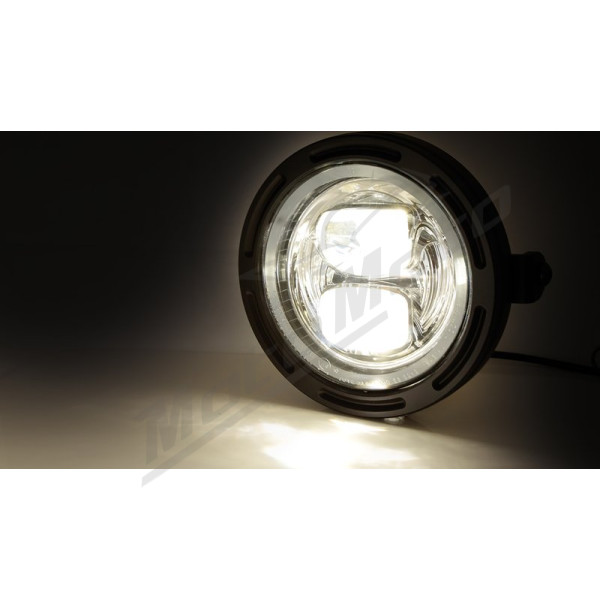

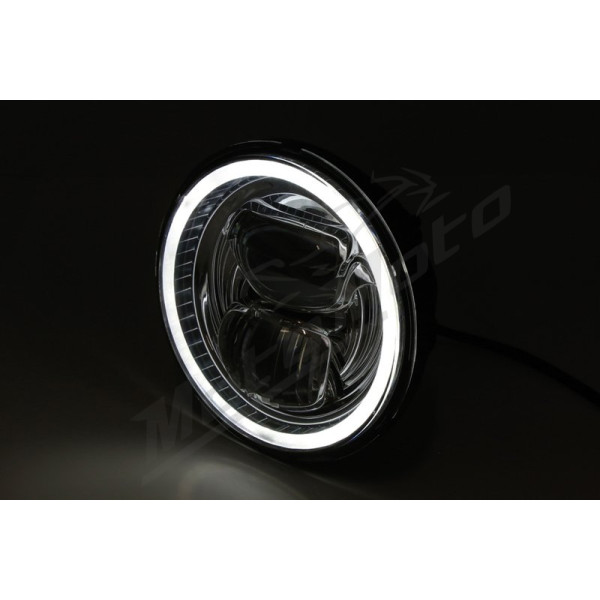

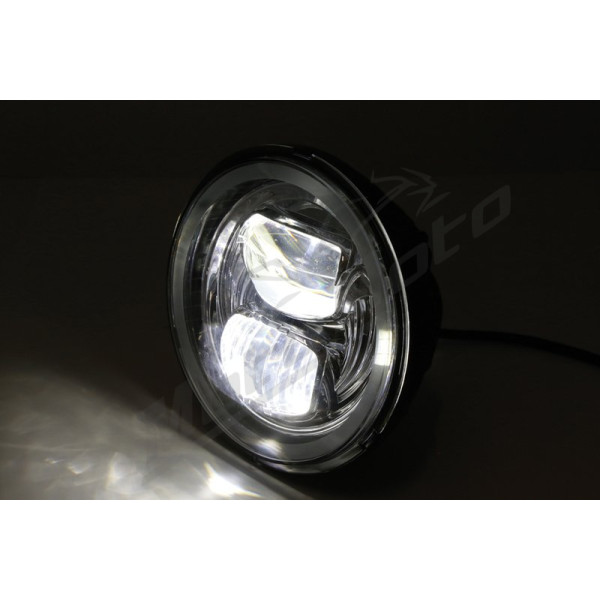

• High beam, low beam (upper side illuminated) and position light ring.
• Symmetrical light flow.
• Certified in Europe (E-tested).
• Side mounting option: M8.
• Connections and power consumption (3-pin connector).
• White wire - low beam (+) / at 12V voltage, 1.5 A current, 15W power (1010.6 lm light flow).
• Red wire - high beam (+) / at 12V voltage, 1.8 A current, 21.5W power (1637.5 lm luminous flux).
• Green wire - side light (+) / at 12V voltage, 0.16 A current, 1.9W power.
• Black wire - ground / mass (-).

Dimensions:

• A diameter = 165 mm.
• GA diameter = 135 mm.
• I diameter = 145 mm.
• T = 60 mm.
• R = 27 mm.
