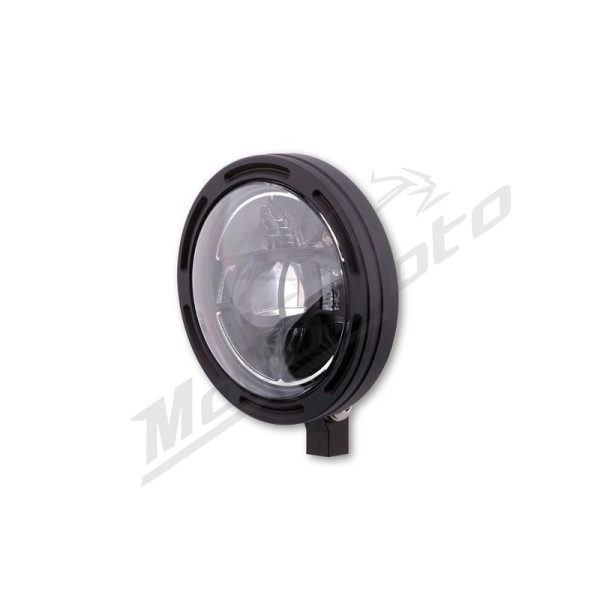

HIGHSIDER Pro Frame-R2 Type 10 Universal Headlight Ø165mm

hemselves, focusing on exclusive style, high quality and innovation. All products are designed according to strict engineering standards, ensuring a long service life and flawless performance.

Features:

• Mounting WITHOUT a lamp housing.
• Improves cooling.
• Many mounting options.
• Flat mounting.
• Modern optics, stylish and innovative.
• Low beam lights at the bottom and in the middle.
• When the high beam is turned on, the upper part lights up.
• Sidelights are on the left and right sides.
• Certified in Europe (E-approved).
• Red wire - low beam (+)
• Yellow wire - high beam (+)
• White wire - sidelight (+)
• Brown wire - ground / mass (-)

Dimensions:

• Diameter A = 165 mm: Overall, the largest diameter of the outer CNC aluminum ring.
• GA diameter = 135 mm: Inner diameter of the frame, indicating the visible diameter of the glass part (reflector) from the front.
• I diameter = 145 mm: Diameter of the inner LED lamp insert (optical element) itself.
• T = 60 mm: Overall depth of the lamp (distance from the windshield to the rear edge of the radiator).
• R = 27 mm: Distance (offset) from the mounting point (bolt location) to the front of the lamp itself.
