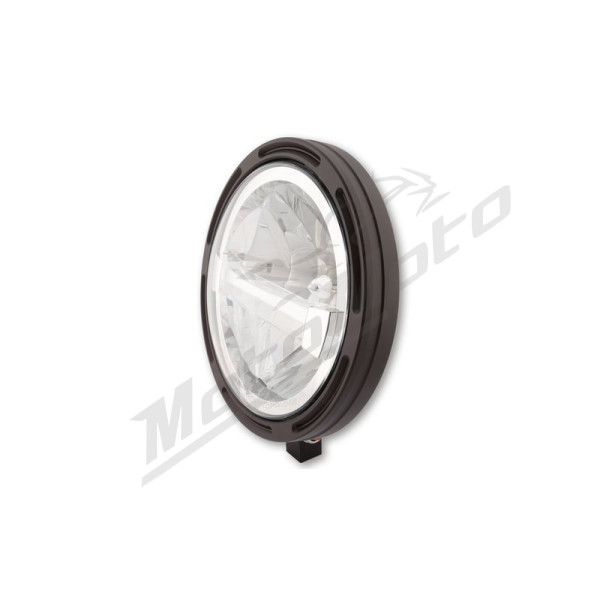

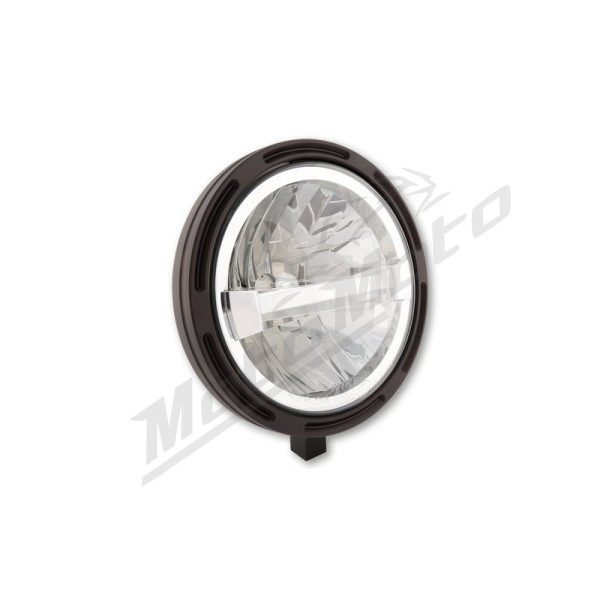

HIGHSIDER Pro Frame-R1 Type Universal headlight black Ø200mm

This is a recognized German brand, developed by motorcyclists themselves, focusing on exclusive style, high quality and innovation. All products are designed to strict engineering standards, ensuring a long service life and flawless operation.

• Features:
• Side mounting.
• Round 7-inch headlight with CNC mounting ring and installation kit.
• Mounted WITHOUT headlight housing.
• Ensures better cooling.
• Provides many installation options.
• Flat mounting.
• Modern, stylishly innovative optics.
• Clear glass.
• Chrome-plated reflector.
• High beam, low beam, parking and daytime running light functions.
• Daytime running lights and marker lights integrated in the central strip.
• The low beam beam spreads above the strip, and the high beam beam - respectively below it.
• Asymmetrical light beam.
• Certified with the E mark, so no additional registration is required.

Dimensions:

• A (diameter = 200 mm): Overall outer diameter of the lamp or mounting ring.
• GA (diameter = 168 mm): Inner diameter of the housing or mounting ring at the edge of the glass/optical element.
• I (diameter = 160 mm): Visible diameter of the illuminating optical element (glass) itself.
• T (depth = 61 mm): Installation depth of the structure (usually indicates how much the lamp protrudes or how much space it needs in depth).
• R (radius / protrusion = 10 mm): Radius of the mounting arc, glass convexity or edge dimension of the clamp.
