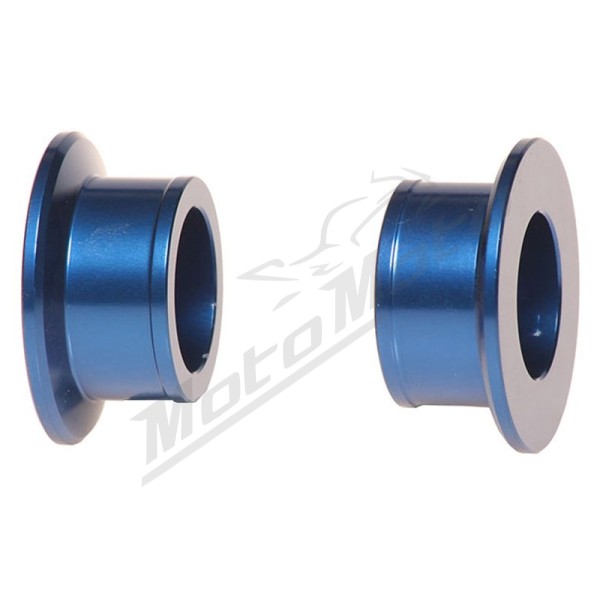

RFX Pro Wheel Spacers Rear (Blue) Yamaha YZF / YZFX 250/450 09-26

RFX Pro Series Wheel Spacers are lighter and more durable than OEM. Constructed from 7075-T6 aluminum and color anodized for added durability. This helps reduce surface wear and reduces the amount of dirt entering the hub, which in turn extends bearing life. Designed with a rear lip to help hook them onto the seals. RFX products are tested and used by many of the top Grand Prix and British motocross teams.

Features:

• 7075-T6 aluminum construction.
• Color anodized.
• Rear seat surround manufactured.

Installation Instructions:

• Start with the motorcycle on a box stand, with the wheels off the ground.
• Remove the large nut and loosen all lower fork leg clamp bolts.
• Remove the nut from the wheel, this may require a brass punch and a hammer if it is tight.
• The front wheel will now be removed.
• The rear wheel should now be loose enough to slide forward and lift the chain off the rear sprocket.
• The rear wheel will now be removed.
• Remove the wheel spacers from the wheels.
• Clean the seals and around them with a contact cleaner such as "Maxima Electrical       Contact" and re-lubricate under the seal.
• Install new wheel spacers.
• Make sure the brake pads open separately inside the brake calipers to allow for extra space when reinstalling the wheel.
• Reinstall the wheels and slide the axles through.
• Reinstall the chain and set the correct chain tension by adjusting the axle blocks.
• Tighten the
• Large axle nuts to the correct torque.
• On a stand, pump the front forks up and down to align the front forks, then tighten the clamping bolts.
• Finally pump the brakes to re-align the calipers.

Fits:
YAMAHA YZ 250 F 250 2026
YAMAHA YZ 250 F 250 2025
YAMAHA YZ 250 F 250 2024
YAMAHA YZ 250 F 250 2023
YAMAHA YZ 250 F 250 2022
YAMAHA YZ 450 F [450]
YAMAHA YZ 450 F 450 2026
YAMAHA YZ 450 F 450 2025
YAMAHA YZ 450 F 450 2024
YAMAHA YZ 450 F 450 2023
YAMAHA YZ 450 F 450 2022
YAMAHA YZ 250 F (CG40) [250]
YAMAHA YZ 250 F (CG40) 250 2021
YAMAHA YZ 250 F (CG40) 250 2020
YAMAHA YZ 250 F (CG40) 250 2019
YAMAHA YZ 450 F (CJ23) [450]
YAMAHA YZ 450 F (CJ23) 450 2021
YAMAHA YZ 450 F (CJ23) 450 2020
YAMAHA YZ 250 FX [250]
YAMAHA YZ 250 FX 250 2021
YAMAHA YZ 250 FX 250 2020
YAMAHA YZ 250 FX 250 2019
YAMAHA YZ 450 FX [450]
YAMAHA YZ 450 FX 450 2020
YAMAHA YZ 450 FX 450 2019
YAMAHA YZ 450 F (CJ23) 450 2019
YAMAHA YZ 450 FX [450]
YAMAHA YZ 450 FX 450 2018
YAMAHA YZ 450 FX 450 2017
YAMAHA YZ 450 FX 450 2016
YAMAHA YZ 250 FX [250]
YAMAHA YZ 250 FX 250 2018
YAMAHA YZ 250 FX 250 2017
YAMAHA YZ 250 FX 250 2016
YAMAHA YZ 250 FX 250 2015
YAMAHA YZ 450 F (CJ22) [450]
YAMAHA YZ 450 F (CJ22) 450 2018
YAMAHA YZ 250 F (CG39) [250]
YAMAHA YZ 250 F (CG39) 250 2018
YAMAHA YZ 250 F (CG39) 250 2017
YAMAHA YZ 450 F (CJ21) [450]
YAMAHA YZ 450 F (CJ21) 450 2017
YAMAHA YZ 450 F (CJ21) 450 2016
YAMAHA YZ 250 F (CG34) [250]
YAMAHA YZ 250 F (CG34) 250 2016
YAMAHA YZ 250 F (CG34) 250 2015
YAMAHA YZ 250 F (CG34) 250 2014
YAMAHA YZ 450 F (CJ18) [450]
YAMAHA YZ 450 F (CJ18) 450 2015
YAMAHA YZ 450 F (CJ18) 450 2014
YAMAHA YZ 250 F (CG33) [250]
YAMAHA YZ 250 F (CG33) 250 2013
YAMAHA YZ 450 F (CJ15) [450]
YAMAHA YZ 450 F (CJ15) 450 2013
YAMAHA YZ 450 F (CJ15) 450 2012
YAMAHA YZ 450 F (CJ15) 450 2011
YAMAHA YZ 450 F (CJ15) 450 2010
YAMAHA YZ 250 F (CG33) [250]
YAMAHA YZ 250 F (CG33) 250 2012
YAMAHA YZ 250 F (CG33) 250 2011
YAMAHA YZ 250 F (CG33) 250 2010
YAMAHA YZ 250 F (CG27) [250]
YAMAHA YZ 250 F (CG27) 250 2009
YAMAHA YZ 450 F (CJ10) [450]
YAMAHA YZ 450 F (CJ10) 450 2009
